Special Note:
When tightening
the two #38538
nuts at the rear
of the gun, allow
a little slack so
that the valve will
seat properly,
completely
shutting off the
flow.

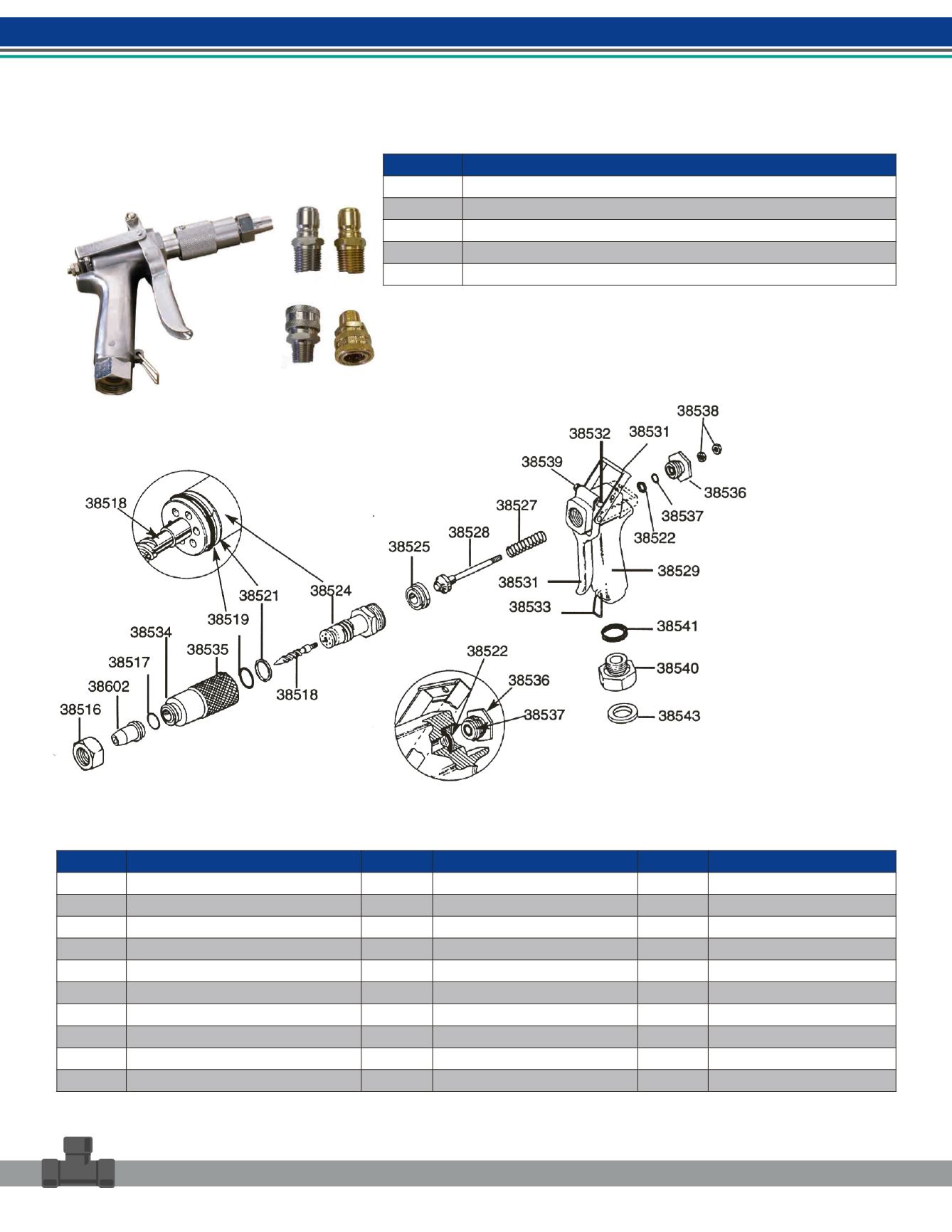

JD-9C AND CT SPRAY GUNS
(38500 & 38501)
FAST FAX BULLETIN 86387
JD-9 GUN & PARTS
JD-9 GUN & PARTS
PART NO
DESCRIPTION
2PV0204
JD9 Gun
2PV0202
Quick Disconnect Socket 1/2" – BRASS
2PV0203
Quick Disconnect Plug 1/2" – BRASS
2PV0206
Quick Disconnect Plug 1/2" – STAINLESS
2PV0207
Quick Disconnect Socket 1/2" – STAINLESS
PART NO
DESCRIPTION
PART NO
DESCRIPTION
PART NO
DESCRIPTION
38510
Rebuild Kit w/o Seat
38527
Valve Spring
38538
Nut (2)
38511
Rebuild Kit with Seat
38528
Stainless Valve
38539
Locking Nut
38516
Cap
38529
Grip
38540
3/4" Garden Hose Coupling
38517
O-Ring*
38531
Trigger Assembly
38541
Special Packing Gasket
38518
Whirler
38532
Bolt, Stainless
38543
Garden Hose Washer
38519
O-Ring*
38533
Stopper Clip
38602
Tip – Large
38521
Backup Ring*
38534
Adjuster Nut (Barrel)
38603
Tip – XL
38522
Gland Packing*
38535
Adjuster Nut Screw
38604
Tip – Medium
38524
Adjuster Body
38536
Gland
38605
Tip – Small
38525
Teflon Valve Seat**
38537
O-ring*
38606
Tip - XS
*Included with 38510 rebuild kit
**Included with 38511
