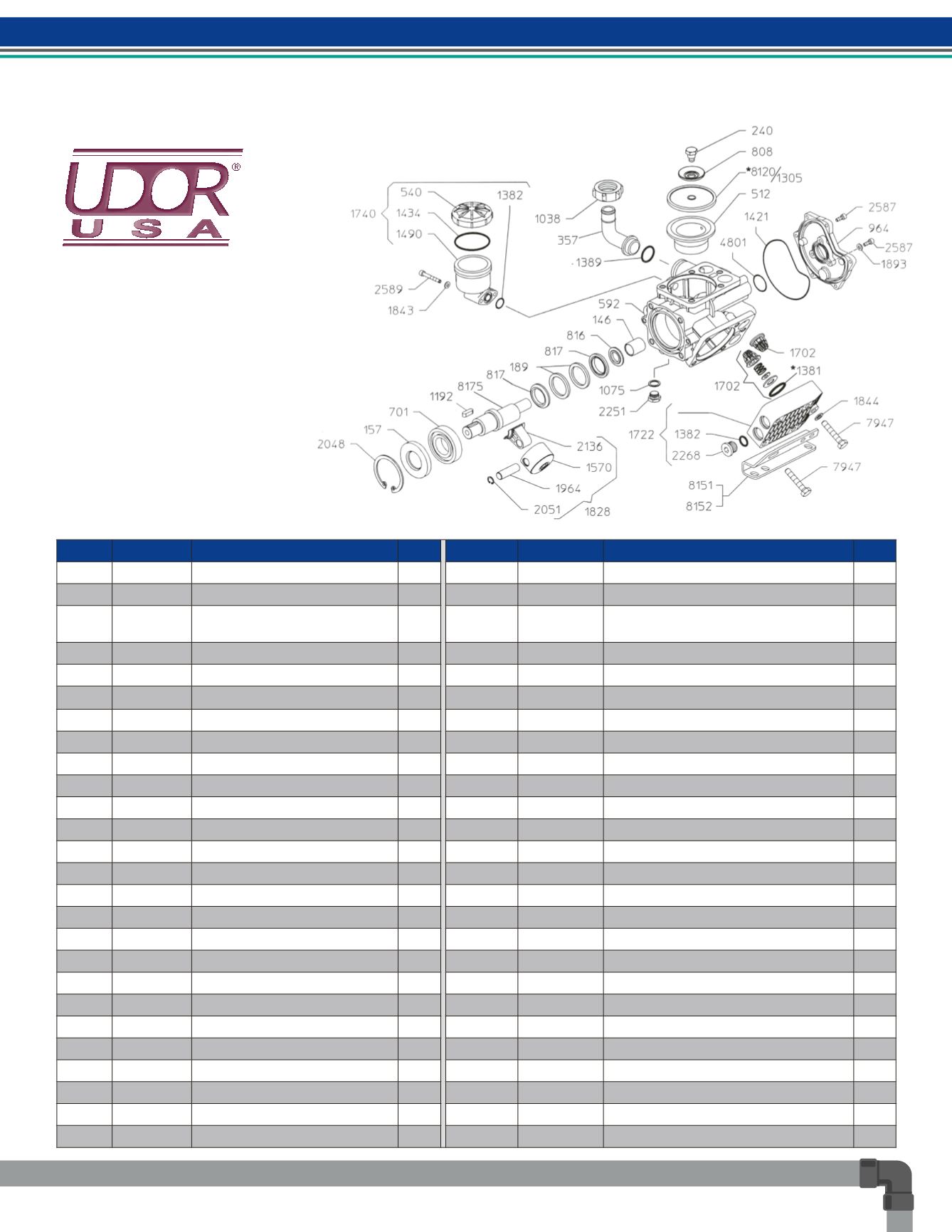

53
REF#
PART#
DESCRIPTION
QTY
146 02-0006.14 Bearing
1
157 02-0007.05 Seal
1
189 02-0001.11 Retaining Ring
2
240 02-0102.04 Diaphragm Bolt
3
357 02-0202.18 Suction Elbow
1
***365 02-0202.52 Suction Elbow (KAPPA-53)
1
512 02-0206.42 Piston Sleeve (KAPPA-33)
3
**513 02-0206.41 Piston Sleeve (KAPPA-43)
3
***514 02-0206.43 Piston Sleeve (KAPPA-53)
3
540 02-0208.98 Oil Reservoir Cap
1
592 02-0209.73 Crankcase
1
701 02-0214.05 Bearing
1
808 02-0301.43 Retaining Washer
3
816 02-0301.54 Spacer
1
817 02-0302.66 Spacer
2
964 02-0501.E2 Body Flange
1
1038 02-0604.18 Barb Nut
1
1075 02-0605.43 Gasket
1
1192 02-0801.02 Shaft Key
1
1305 02-0903.43 Piston Diaphragm (BUNA-N) optional
3
*1381 02-1101.27 O-Ring
6
1382 02-1101.29 O-Ring
7
1389 02-1101.41 O-Ring
1
1421 02-1101.88 O-Ring
1
1434 02-1101.D1 O-Ring
1
1490 02-1203.27 Oil Reservoir
1
1570 02-1205.07 Piston (KAPPA-33/43)
3
***1578 02-1205.18 Piston (KAPPA-53)
3
1702 02-6006.01 Valve Assembly
6
1722 02-6017.13 Head Assembly
3
REF#
PART#
DESCRIPTION
QT
1740 02-6033.01 Oil Reservoir Assembly
1
1828 02-6015.45 Piston & Rod Assembly (KAPPA-33/43)
3
1843 02-1403.07 Washer
2
1844 02-1403.09 Washer
1
***1849 02-6015.46 Piston & Rod Assembly (KAPPA-53)
3
1893 02-1412.03 Washer
3
1964 02-1502.03 Connecting Rod Pin (KAPPA-33/43)
3
***1967 02-1502.07 Connecting Rod Pin (KAPPA-53)
3
2048 02-1506.07 Snap Ring
1
2051 02-1506.15 Snap Ring
6
2136 02-1519.28 Connecting Rod (KAPPA-33/43/53)
3
2251 02-1603.02 Plug
1
2268 02-1603.32 Head Plug
6
2587 02-1805.20 Bolt
9
2589 02-1805.31 Bolt
2
4801 02-1101.C3 O-Ring
1
7947 02-1804.21 Head Bolt
1
*8120 02-0903.50 Piston Diaphragm (DESMOPAN)
3
8151 02-1202.63 Mounting Rail - Right Side
1
8152 02-1202.64 Mounting Rail - Left Side
1
8175 02-0002.B8 Crankshaft (KAPPA-33)
1
**8176 02-0002.B7 Crankshaft (KAPPA-43/53)
1
* Parts included in Diaphragm Repair Kit - Part #8700.45
Diaphragm Repair Kit also available in BUNA-N - Part #8700.46
** Parts for KAPPA-43 only.
*** Parts for KAPPA-53 only.
KAPPA-33/
Medium Pressure Diaphrag
Phone: (740) 965-4112 fax: (740) 965-5324
99% of items in stock for same-day ship
UDOR PUMP
UDOR PUMP
REF. # PART #
DESCRIPTION
QTY REF. #
PART #
DESCRIPTION
QTY
146 02-0006.14
BEARING
1
1570
02-1205.07
PISTON
3
157 02-0007.05
SEAL
1
***1578 02-1205.18
PISTON
3
189 02-0001.11
RETAINER RING
2
1702
02-6006.01
VALVE ASSEMBLY
K25/30/33/40/43/53/75/100
6
240 02-0102.04
DIAPHRAGM BOLT
3
1722
02-6017.13
HEAD-KAPPA 25/33/35/43/53/55
3
357 02-0202.18
HOSE BARB ELBOW
1
1740
02-6033.01
OIL RESERVOIR KIT
1
***365 02-0202.52
HOSE BARB ELBOW
1
1828
02-6015.45
PISTON ROD ASSY
3
512 02-0206.42
PISTON SLEEVE K33
3
1843
02-1403.07
WASHER
2
*513 02-0206.41
PISTON SLEEVE K43
3
1844
02-1403.09
WASHER
11
***514 02-0206.43
PISTON SLEEVE K53
3
***1849 02-6015.46
PISTON ROD ASSY
3
540 02-0208.98
OIL CAP CLICK STYLE
1
1964
02-1502.03
WRIST PIN
3
592 02-0209.73
CRANKCASE K33/43/53
1
***1967 02-1502.07
WRIST PIN
3
701 02-0214.05
BEARING
1
2048
02-1506.07
SNAP RING
1
808 02-0301.43
DIAPHRAGM WASHER
3
2051
02-1506.15
SNAP RING
6
816 02-0301.54
SPACER
1
2136
02-1519.28
CONNECTING ROD
3
817 02-0302.66
SPACER
2
2251
02-1603.02
PLUG
1
964 02-0501.E2 MANIFOLD COVER K 33/43/53
1
2268
02-1603.32
PLUG
6
1038 02-0604.18
SUCTION NUT
1
2587
02-1805.20
BOLT
6
1075 02-0605.43
GASKET
1
2589
02-1805.31
BOLT
2
1192 02-0801.02
SHAFT KEY
1
4801
02-1101.C3
O-RING
1
1305 02-0903.43
PISTON DIAPHRAGM BUNA 3
7947
02-1804.21
BOLT
15
*1381 02-1101.27
O-RING
6
*8120
02-0903.50
PISTON DIAPHRAGM
3
1382 02-1101.29
O-RING
7
8151
02-1202.63
MOUNTING RAIL
1
1389 02-1101.41
O-RING
1
8152
02-1202.64
MOUNTING RAIL
1
1421 02-1101.88
O-RING
1
8175
02-0002.B8
CRANKSHAFT (K33)
1
1434 02-1101.D1
O-RING
1
**8176 02-0002.B7
CRANKSHAFT (K43/K53)
1
1490 02-1203.27
OIL RESERVOIR
1
KAPPA-33/43/53
MEDIUM PRESSURE
DIAPHRAGM PUMP
REF. #
PART#
DESCRIPTION
QTY
112
0004.18
Engine Gear
1
137
0006.08
Bearing
1
681
0213.22
Pump Gear
1
756
0228.23
Gear Case Half
1
977
06 . 5
Gasket
1
988
0602.27
Gasket
1
1072
0605.09
Gasket
1
1400
1101.57
O-Ring
1
18 5
1403.10
Washer
4
*1847 1403.12
Aluminum Gasket
(old style)
1
2034 15 5.29
Gear Case Half
1
REF. #
PART#
DESCRIPTION
QTY
2251
1603.02
Oil Plug
1
2283
603.69
Oil Sight Gauge
1
2288
1603. 1
Vent Cap
1
2580
180 .01
Bolt
4
2582
1805.04
Bolt
3
*2596 1805.23
Bolt
(old style)
Allenhead 6
2622 1807.07
Bolt - 5/16" x 1"
4
2623 1807.08
Bolt - 5/16" x 2-1/4"
1
5678 1512.08
Guide Pin
1
*5950 1804.77
Side Plug
(old style)
1
5949 1804.72
Bolt
6
5027.75 Gear Reduction
Parts List
5027.75
Gear Reduction
Requires
16 oz.
of 90W
Gear Lube
For use with:
RO-70/GR-5
TAU-35/GR
KAPPA-30/GR
KAPPA-40/GR
KAPPA-35/GR
KAPPA-55/GR-5
ZETA-40E/GR
ZETA-40P/GR
ZETA-85/GR
ZETA-85P/GR-5
*2596/5949
1400
2623
112
1072
2251
756
1845
2622
137
Old
Style
Level
Plug
2283
5678
2288
2582
681
2580
988
2034
977
5950*
1847*
