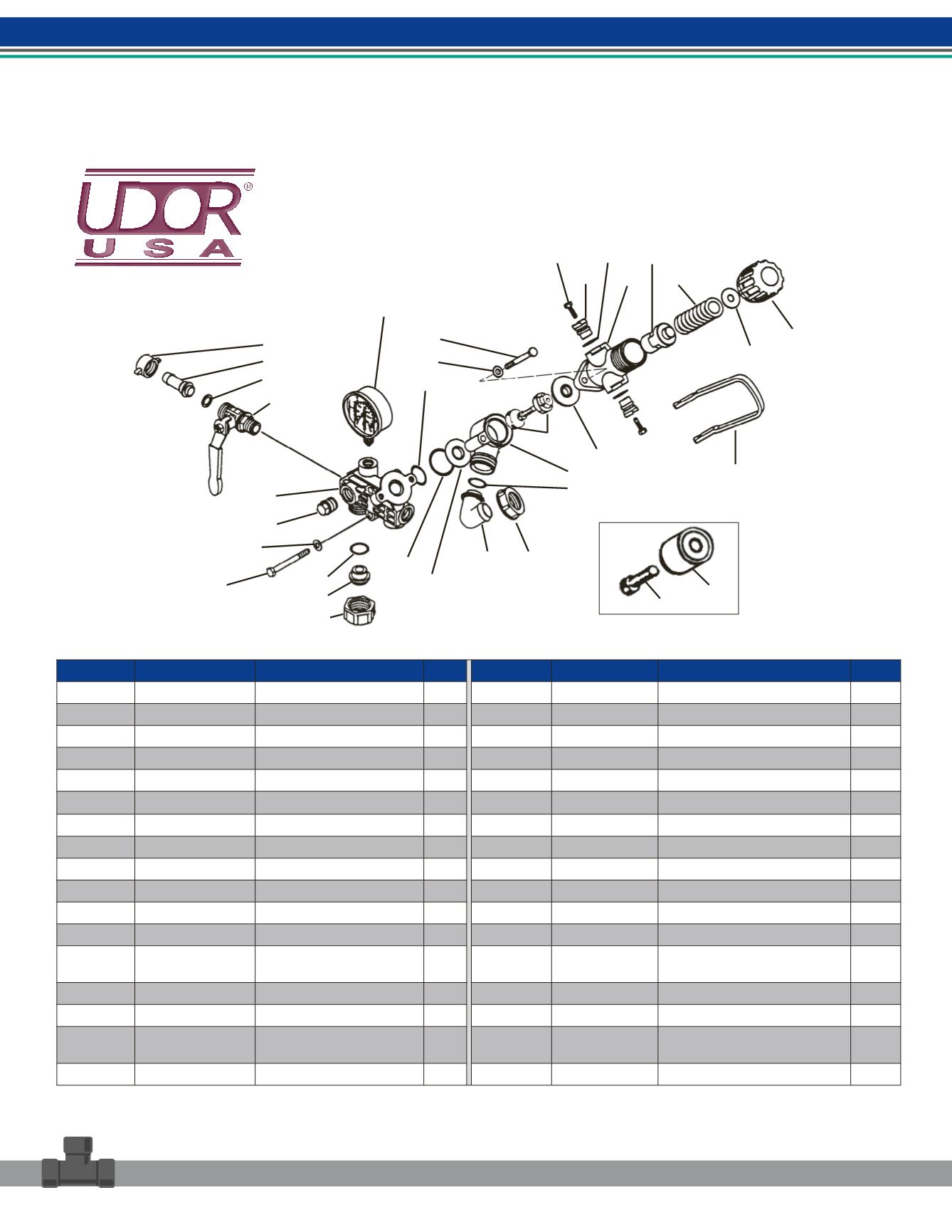

UDOR CONTROL UNIT
REF. #
PART #
DESCRIPTION
QTY REF. #
PART #
DESCRIPTION
QTY
358
02-0202.19
HOSE BARB STRAIGHT
2
1374
02-1101.12
O-RING
2
426
02-0204.40
ADJUSTMENT BODY
1
*1389
02-1101.41
O-RING
1
428
02-0204.48
REGULATOR BODY
1
1494
02-1203.33
RELIEF VALVE BYPASS BODY
1
459
02-0205.10
REGULATOR PISTON 1
1545
02-1204.19
STEEL POPPET
1
460
02-0205.11
REGULATOR CAM 2
1841
02-1403.06
WASHER
1
776
02-0254.04
HOSE BARB ELBOW 1
1843
02-1403.07
WASHER
4
1034
02-0604.09
OUTLET NUT
2
*1936
02-1501.23
SEAT
1
1040
02-0604.26
BYPASS NUT
1
2274
02-1603.44
PLUG
2
1071
02-0605.05
GASKET
2
2379
02-1801.17
ADJUSTMENT KNOB
1
1124
02-0608.45
RIGHT BALL VALVE
2
2477
02-1808.10
SCREW
2
1233
02-0901.24
SPRING HP
1
2479
02-1804.74
BOLT
4
1238
02-0901.47
SPRING LP
1
2630
02-1810.01
BOLT
1
1275
02-0902.25
HANDLE
1
*3000
02-8701.04 REPAIR KIT URETHANE POPPET
AND RETAINER
1
*1304
02-0903.26
RELIEF VALVE DIAPHRAGM 1
7330
02-0604.29
PLUG NUT
1
1349
06-GG350
GAUGE
1
7700
02-1603.22
PLUG
1
*1368
02-1101.04
O-RING
1
8140
02-0903.42
RELIEF VALVE DIAPHRAGM
VITON
1
1370
02-1101.06
O-RING
2
1238/1233
2379
1841
1275
1389
1936
1040
1304/8140
1494
1071
1124
1374
3000
460
2479
1843
1349/1350
1368
358
1034
428
2274
776
426
459
1370
2477
1374
7700
7330
6010.24 & 6010.24/LP CONTROL UNIT
Parts List
REF#
PART# DESCRIPTION
QTY
1370
1101.06 O-Ring
2
1374
1101.12 O-Ring
2
*1389
1101.41 O-Ring
1
1494
1203.33 R.V. Body
1
1545
1204.19 Steel Poppet (Optional)
1
1841
1403.06 Washer
1
1843
1403.07 Washer
4
*1936
1501.23 Seat
1
2274
1603.44 Plug
2
2379
1801.17 Adjustment Knob
1
2477
1808.10 Bolt
2
2479
1804.74 Bolt
4
2630
1810.01 Bolt, Stainless Steel (Optional)
1
*3000
8701.04 Urethane Poppet Assembly
1
7330
0604.29 Nut
1
7700
1603.22 Plug
1
8140
0903.42 Diaphragm, Viton (Optional)
1
REF#
PART# DESCRIPTION
QTY
358
0202.19 1/2' Hose Barb
2
426
0204.40 Valve Body
1
428
0204.48 Main Body
1
459
0205.10 Valve Cylinder
1
460
0 05.11 Valve Cylinder Cam
2
776
0254.04 Bypass Elbow Hose Barb
1
1034
0604.09 Discharge Barb Nut
2
1040
0604.26 Bypass Barb Nut
1
1071
0605.05 Gasket
2
1124
0608.45 Ball valve
2
1233
0901.24 Spring
1
1238
0901.47 300 PSI Spring (for 6010.24/LP)
1
1275
0902.25 Dump Valve Lever
1
*1304
0903.26 Diaphragm
1
1349
GG-350 Gauge (for 6010.24/LP)
1
1350 GG-1000 Gauge
1
*1368
101.04 O-Ring
1
*
Parts included in Repair Kit
(with Urethane Poppet)
#8701.10
Also available with Steel Poppet -
Repair Kit #8701.02
1545
2630
Optional Steel
Poppet Assembly
2479
1843
Phone: (740) 965-4112 fax: (740) 965-5324
99% of items in stock for same-day shipping
6010.24 & 6010.24/LP CONTROL UNIT
PARTS LIST
REF. #
PART#
DESCRIPTION
QTY
112
0004.18
Engine Gear
1
137
0006.08
Bearing
1
681
0213.22
Pump Gear
1
756
0228.23
Gear Case Half
1
977
0602.05
Gasket
1
988
0602.27
Gasket
1
1072
0605.09
Gasket
1
1400
1101.57
O-Ring
1
1845
1403.10
Washer
4
*1847 1403.12
Aluminum Gasket
(old style)
1
2034 1505.29
Gear Case Half
1
REF. #
PART#
DESCRIPTION
QTY
2251
1603.02
Oil Plug
1
2283
1603.69
Oil Sight Gauge
1
2288
1603.81
Vent Cap
1
2580
1805.01
Bolt
4
2582
1805.04
Bolt
3
*2596 1805.23
Bolt
(old style)
Allenhead 6
2622 1807.07
Bolt - 5/16" x 1"
4
2623 1807.08
Bolt - 5/16" x 2-1/4"
1
5678 1512.08
Guide Pin
1
*5950 1804.77
Side Plug
(old style)
1
5949 1804.7
Bolt
6
5027.75 Gear Reduction
Parts List
5027.75
Gear Reduction
Requires
16 oz.
of 90W
Gear Lube
For use with:
RO-70/GR-5
TAU-35/GR
KAPPA-30/GR
KAPPA-40/GR
KAPPA-35/GR
KAPPA-55/GR-5
ZETA-40E/GR
ZETA-40P/GR
ZETA-85/GR
ZETA-85P/GR-5
*2596/5949
1400
2623
112
1072
2251
756
1845
2622
137
Old
Style
Level
Plug
2283
5678
2288
2582
681
2580
988
2034
977
5950*
1847*
